Product Introduction
The amorphous core transformer is a high - efficiency power device. Its amorphous core reduces core losses significantly compared to traditional silicon steel cores, improving energy efficiency. With a Dyn11 connection group, it offers balanced three - phase output and good voltage regulation. Rated at 100 KVA and 6.3 KV, it is ideal for distribution networks, providing reliable and economical power transmission and distribution.
Should you require further details, kindly reach out to us via email at sales@gneesteels.com.
Product Characteristics
Epoxy resin cast transformers are power transformers with windings encapsulated in solid insulation. Epoxy resin dry-type transformers use epoxy resin as the insulation material. The high-voltage and low-voltage windings are made of copper strips (foils). In a vacuum environment, the epoxy resin is cast and solidified to form a high-strength insulation structure of Class F or Class H.
Applications of 1500 KVA Amorphous Core Transformer
Dry-type transformers are more adaptable to various environments and have lower maintenance costs. They are widely used in high-rise buildings, commercial centers, hospitals, factories and other places. They can efficiently convert and distribute electrical energy, providing continuous and stable power support for our lives and production. They are an indispensable and important part of the modern power system.
Scope of Supply
Product: Amorphous alloy dry-type transformer
Voltage level: up to 11 KV
Rating level: up to 2500 KVA
The dry type amorphous steel core transformer can be designed according to customer's requirements.
Technical Specification

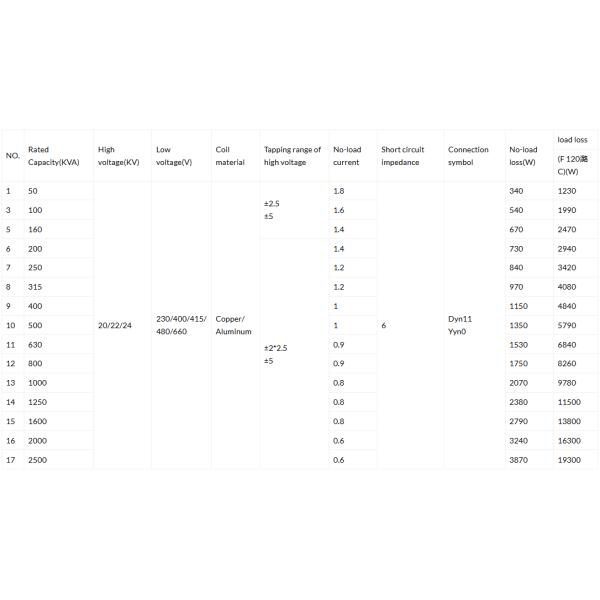

1500 KVA Amorphous core transformerspecifications and data sheet
General Arrangement Drawing
Product details
The Functions of a Dry-type Transformer Temperature Controller are as Follows:
1.Temperature Monitoring and Display: Measure and display the temperatures of the three-phase windings of the transformer. It is possible to switch to display the phase with the highest temperature.
2.Cooling Fan Control: Automatically or manually control the start and stop of the transformer fan according to the set temperature. There is also a timing detection function to prevent fan failures.
3.Over-temperature Alarm and Tripping: When the temperature exceeds the limit, an alarm signal will be issued. When the temperature reaches a higher set value, it will trip automatically to protect the amorphous metal transformer.
4.Fault Alarm: When faults such as open circuits or short circuits occur in the amorphous transformer sensors, an alarm will be issued and the fault type will be displayed. The fan will be controlled according to the fault situation.
5.Parameter Setting and Saving: Various temperature values and timing times can be set on the panel, and the 1500 KVA amorphous core transformer data will not be lost in case of a power outage.
6.Other Functions: It has a "black box" function to record the temperature of the amorphous steel core transformer at the moment of power failure. Some controllers have a communication function, enabling remote monitoring and control.
If you wish to obtain more detailed information, please feel free to contact us via email at sales@gneesteels.com.
|
|
1500 KVA Amorphous Core Transformer Images
|
